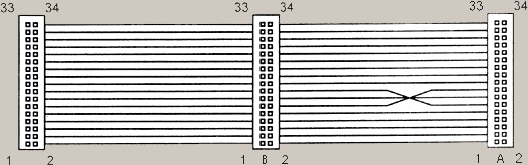

Кабели / Плоский кабель (шлейф) Floppy
Раcпиновка шлейфа Floppy
 |
| Обозначение |
Цвет провода |
№ вывода |
| Материнская плата |
Дисковод B: |
Дисковод A: |
| Ground |
 |
1 |
1 |
1 |
| Reduced Write |
 |
2 |
2 |
2 |
| Ground |
|
3 |
3 |
3 |
| Reserved |
|
4 |
4 |
4 |
| Ground |
|
5 |
5 |
5 |
| Drive Select 3 |
|
6 |
6 |
6 |
| Ground |
|
7 |
7 |
7 |
| Index |
|
8 |
8 |
8 |
| Ground |
|
9 |
9 |
9 |
| Drive Select 0 |
|
10 |
10 |
16 |
| Ground |
|
11 |
11 |
15 |
| Drive Select 1 |
|
12 |
12 |
14 |
| Ground |
|
13 |
13 |
13 |
| Drive Select 2 |
|
14 |
14 |
12 |
| Ground |
|
15 |
15 |
11 |
| Motor On |
|
16 |
16 |
10 |
| Ground |
|
17 |
17 |
17 |
| Direction Select |
|
18 |
18 |
18 |
| Ground |
|
19 |
19 |
19 |
| Step |
|
20 |
20 |
20 |
| Ground |
|
21 |
21 |
21 |
| Write Data |
|
22 |
22 |
22 |
| Ground |
|
23 |
23 |
23 |
| Write Gate |
|
24 |
24 |
24 |
| Ground |
|
25 |
25 |
25 |
| Track 0 |
|
26 |
26 |
26 |
| Ground |
|
27 |
27 |
27 |
| Write Protect |
|
28 |
28 |
28 |
| Ground |
|
29 |
29 |
29 |
| Read Data |
|
30 |
30 |
30 |
| Ground |
|
31 |
31 |
31 |
| Side 1 Select |
|
32 |
32 |
32 |
| Ground |
|
33 |
33 |
33 |
| Diskette Change |
|
34 |
34 |
34 |
